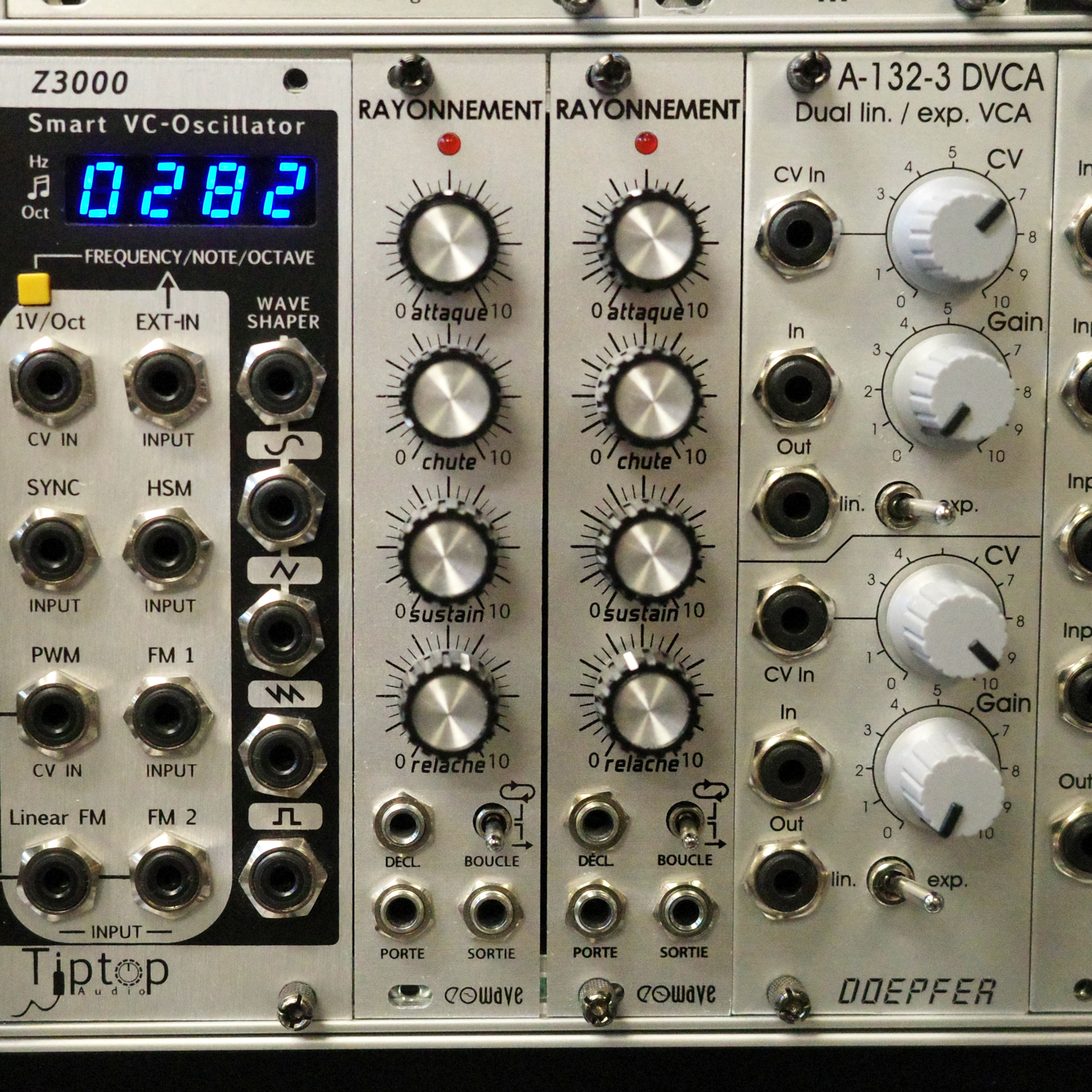

Begagnad Eowave Rayonnement

The knobs attaque, chute, sustain, relâche enable to set the curse of the particles, which create that special glow. The incidence on the sound would be very similar to the effect of an ADSR envelope generator, shaping the sound with attack, decay, sustain and release.
The BOUCLE mode enables looping in AD state to simulate the glow pulsation.
attaque: set attack time from 1ms to 37s
chute: set decay time from 1ms to 37 s
sustain: set sustain level
relache : set release time from 1ms to 37s
0-10V range
> tech specs
DECL : retrig input of the envelope, when the gate is off , an impulse will generate an AD envelope, suitable for percussive sounds.
BOUCLE : loop mode, when set ON, the enveloppe will loop in the AD state.
PORTE : gate input of the envelope, a gate signal will trigger the envelope, it will stay in the sustain state until the gate is released.
SORTIE : audio output
Format : eurorack 5HP
Consumption: +12V 22mA, -12V 5mA
