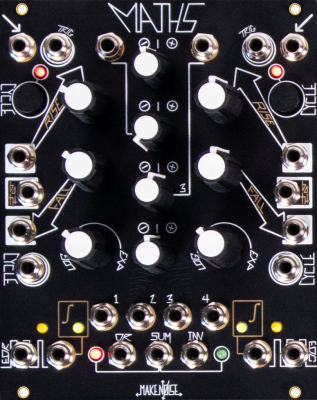

Begagnad Make Noise Maths mk2

MATHS is an analog computer designed for musical purposes. Amongst other things, it will allow you to:
• Generate a variety of linear, logarithmic, or exponential triggered or continuous functions
• Integrate an incoming signal
• With no signal applied, generate a variety of linear, logarithmic, or exponential functions
• Add, subtract and OR up to 4 signals
• Generate analog signals from digital information (Gate / Clock)
• Generate digital information (Gate / Clock) from analog signals
• Delay digital (Gate / Clock) information
If the above list reads like science rather than music, here is the translation:
• Voltage Controlled Envelope or LFO as slow as 25 minutes and as fast as 1khz
• Apply Lag, Slew or Portamento to control voltages
• Change the depth of modulation and modulate backwards!
• Combine up to 4 control signals to create more complex modulations
• Musical Events such as Ramping up or Down in Tempo, on command
• Initiating Musical events upon sensing motion in the system
• Musical note division and / or Flam
• Perfect for modulating the DPO and just about anything else
Specifications:
Width: 20hp
Max Depth: 24mm
Power: 60mA@ +12V, 50mA @ -12V
