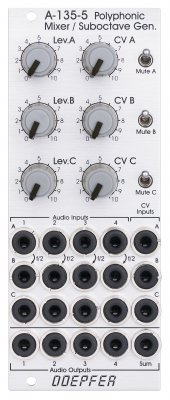

Doepfer A-135-5 Polyphonic Mixer

Module A-135-5 is a combination of a voltage controlled polyphonic mixer and a polyphonic suboctave generator. It is made of 12 voltage controlled amplifiers (VCAs) which are arranged in form of a 4x3 matrix. Herewith up to three four-voice polyphonic signals (e.g. the outputs of three polyphonic VCOs A-111-4) can be mixed. The level of each of the three polyphonic channels (A, B, C) with four voices each can be controlled manually or by means of an external control voltage with associated attenuators. In addition the module features four frequency dividers which derive the suboctaves from the four input signals of channel A. The suboctave signals are wired to the switching contacts of the sockets of channel B. As long as the sockets of channel B are not patched the suboctave signals of channel A are used as inputs for channel B. The suboctaves are symmetrical rectangle waves with half the frequency of the corresponding signal A. For example two polyphonic VCOs A-111-4) can be used and patched to the channels A and C. Channel B then provides the suboctaves of channel A. Width: 10 TE / 10 HP / 50.5 mm Depth: 55 mm (gemessen ab der Rückseite der Frontplatte mit Suboktav-Board / measured from the rear side of the front panel with suboctave board), 45 mm ohne Suboktav-Board / 45 mm without suboctave board Current: +50 mA (+12V) / -40mA (-12V)
