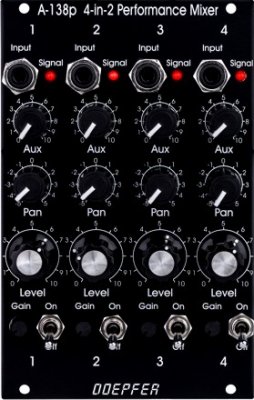

Doepfer A-138p Vintage Edition

Modules A-138p/o are used to built a simple performance mixer (instead of an external stand-alone mixer). Module A-138p is the 4-fold input module, A-138o is the output module that can be combined with one or more A-138p. A-138p features: • 4 channels • controls and inputs for each channel • input (3.5 mm mono socket) • signal LED (as a coarse monitor of the incoming level, the level is measured after the gain control) • mute switch • gain (control to adapt different audio levels) • Level (the main volume control) • Aux • Pan • internal jumper for each channel to choose between Aux pre/post main Level control • internal connection to the output module and to other A-138p modules • A-138p requires A-138o (no stand-alone use)
