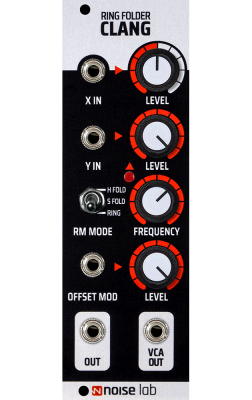

Noise Lab Clang
1 900 SEK
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
\* Redigera dessa rader under Innehåll > Produktsida
Beskrivning
Art.nr: NLClang
CLANG Ring Folder
Clang is a unique combination of a four-quadrant multiplier (ring modulator) and wave folder that can generate a wide range of interesting sounds from just a sine or triangle waveform. From screeching drones and strange bell sounds to plucky tones or center aligned pwm waveforms. Three inputs which accept both audio and control voltages, and two outputs with slightly different functions: the left simply provides the processed sound, while the right routes the signal via a VCA, controlled by the Offset Mod input and its level knob. Clang also have an integrated triangle oscillator normalled to the Y input.
RM Mode switch (Ring Modes)
1: Four-quadrant multiplier. Modulation of the carrier signal with offset control. Ideal for producing typical bell-like tones.
2: A soft folding circuit that bends the waveform and adds some even harmonics to the input sound. Offset Mod input can be used to animate the folded signal.
3: A hard fold circuit that generates a unusual center aligned pwm-like waveform which can be animated using the built-in oscillator or an external CV source.
• Width: 8HP
• Depth: 26 mm
• Power: 25 mA (+12 V) / 25 mA (-12 V)
Clang is a unique combination of a four-quadrant multiplier (ring modulator) and wave folder that can generate a wide range of interesting sounds from just a sine or triangle waveform. From screeching drones and strange bell sounds to plucky tones or center aligned pwm waveforms. Three inputs which accept both audio and control voltages, and two outputs with slightly different functions: the left simply provides the processed sound, while the right routes the signal via a VCA, controlled by the Offset Mod input and its level knob. Clang also have an integrated triangle oscillator normalled to the Y input.
RM Mode switch (Ring Modes)
1: Four-quadrant multiplier. Modulation of the carrier signal with offset control. Ideal for producing typical bell-like tones.
2: A soft folding circuit that bends the waveform and adds some even harmonics to the input sound. Offset Mod input can be used to animate the folded signal.
3: A hard fold circuit that generates a unusual center aligned pwm-like waveform which can be animated using the built-in oscillator or an external CV source.
• Width: 8HP
• Depth: 26 mm
• Power: 25 mA (+12 V) / 25 mA (-12 V)
- ButiksadressRoslagsgatan 19, 11355 Stockholm
- FunktionRingmodulator Wave Folder
- SkickNy
- TillverkareNoise Lab
