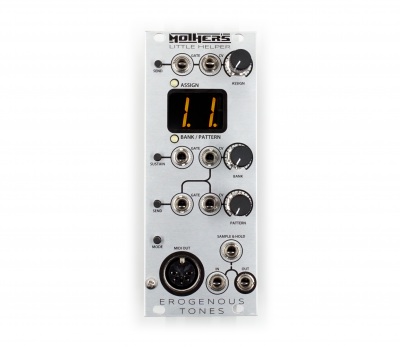

Erogenous Tones Mothers Little Helper

Mother’s Little Helper is a companion module intended to be used with the Moog Mother32 semi-modular synthesizer. The MIDI out port allows CV/Gate control of Bank and Patch, changing the assign output, and allows turning on/off the MIDI controlled sustain ability of the Mother32. In addition, a Sample & Hold circuit has been added that is designed to be gate driven. Overall Features: • Assign CV/Gate input with attenuator, can select 16 different assign output settings for the Mother32. • Bank/Pattern dual CV and Gate input with attenuators. Can select from 8 banks and 8 patterns stored in the Mother32. • Gate toggle input for Sustain setting. • OR’d buttons for all Gate inputs for manual triggering. • 2 Segment LED to show Assign or Bank/Pattern settings. • Decimal indicates value last sent to Mother32 over MIDI. • Aluminum knobs with knurled edge for easy manipulation • 10 HP • Skiff Friendly (Very shallow) • Power: +12v/-12v • Current: 130ma/10ma
