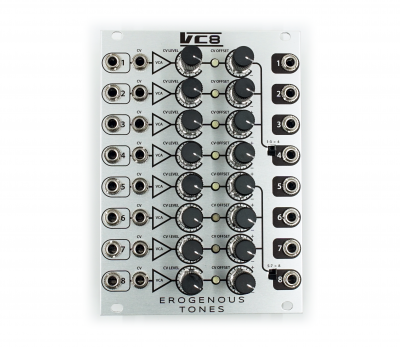

Erogenous Tones VC8

VC8 is a high density DC Coupled VCA module designed to give you a large number of VCAs with CV level and OFFSET control, along with optional VCA controlled dual sub-mix capability. Overall Features: • 8 channels of linear VCA • DC coupled • Each channel has a CV LEVEL attenuator, full VCA can be open at +5V. • Each channel has a CV OFFSET control that can add positive or negative amounts to the CV LEVEL value. When no CV LEVEL is applied, CV OFFSET is used to open the VCA. • White LED indicates CV LEVEL after OFFSET applied • Based on LM13700 OTA. • Output sub-mix configuration can be engaged on 2 channels • Channel 4 sub-mix engaged will receive VCA channels 1-3 and be controlled by VCA 4 • Channel 8 sub-mix engaged with receive VCA channels 5-7 and be controlled by VCA 8 • Channels 1,2,3,5,6,7 still provide straight through VCA signal regardless of sub-mix setting • Aluminum knobs with knurled edge for easy manipulation • 18 HP • Skiff Friendly (Very shallow) • Power: +12v/-12v • Current: 80mA/70mA
