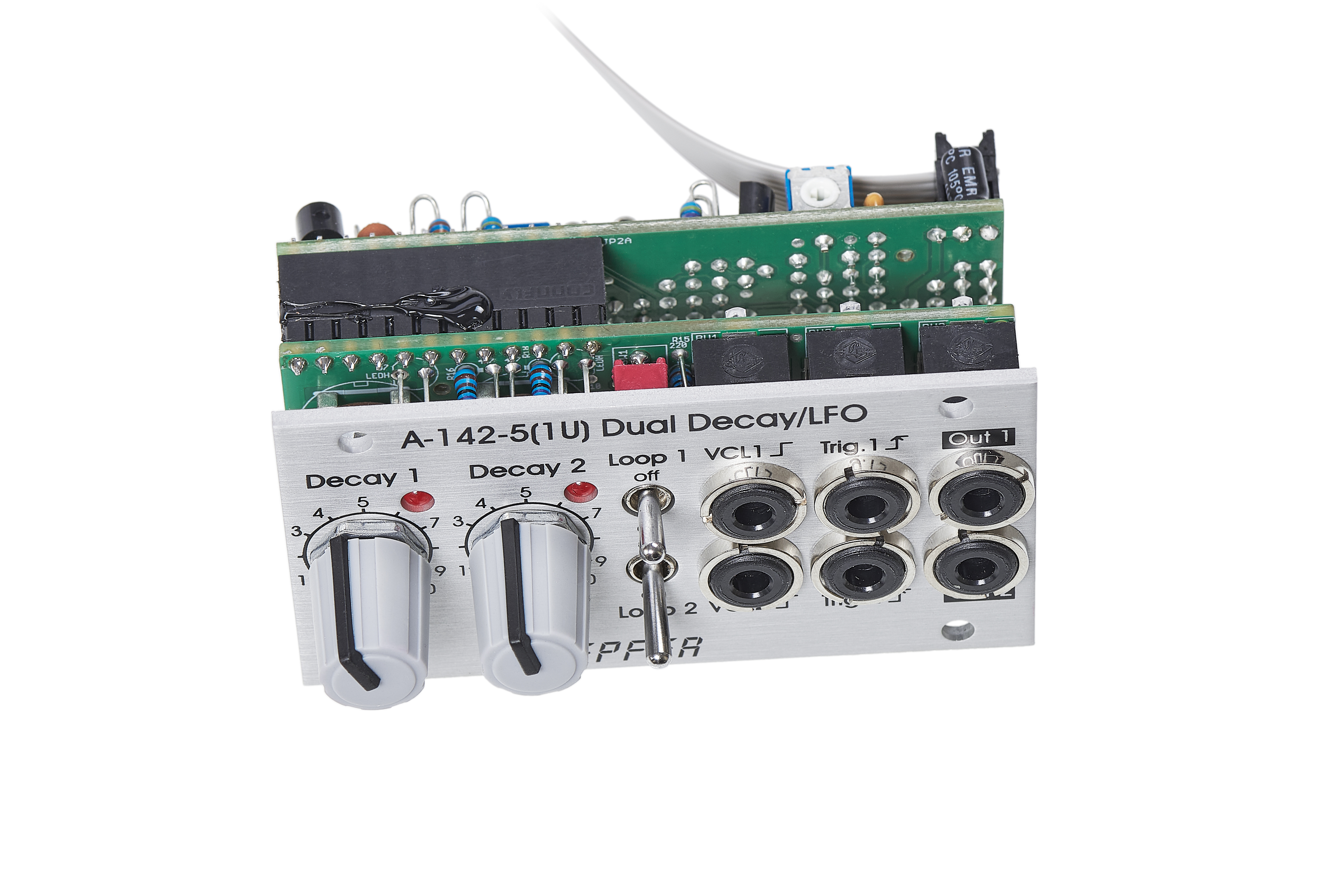

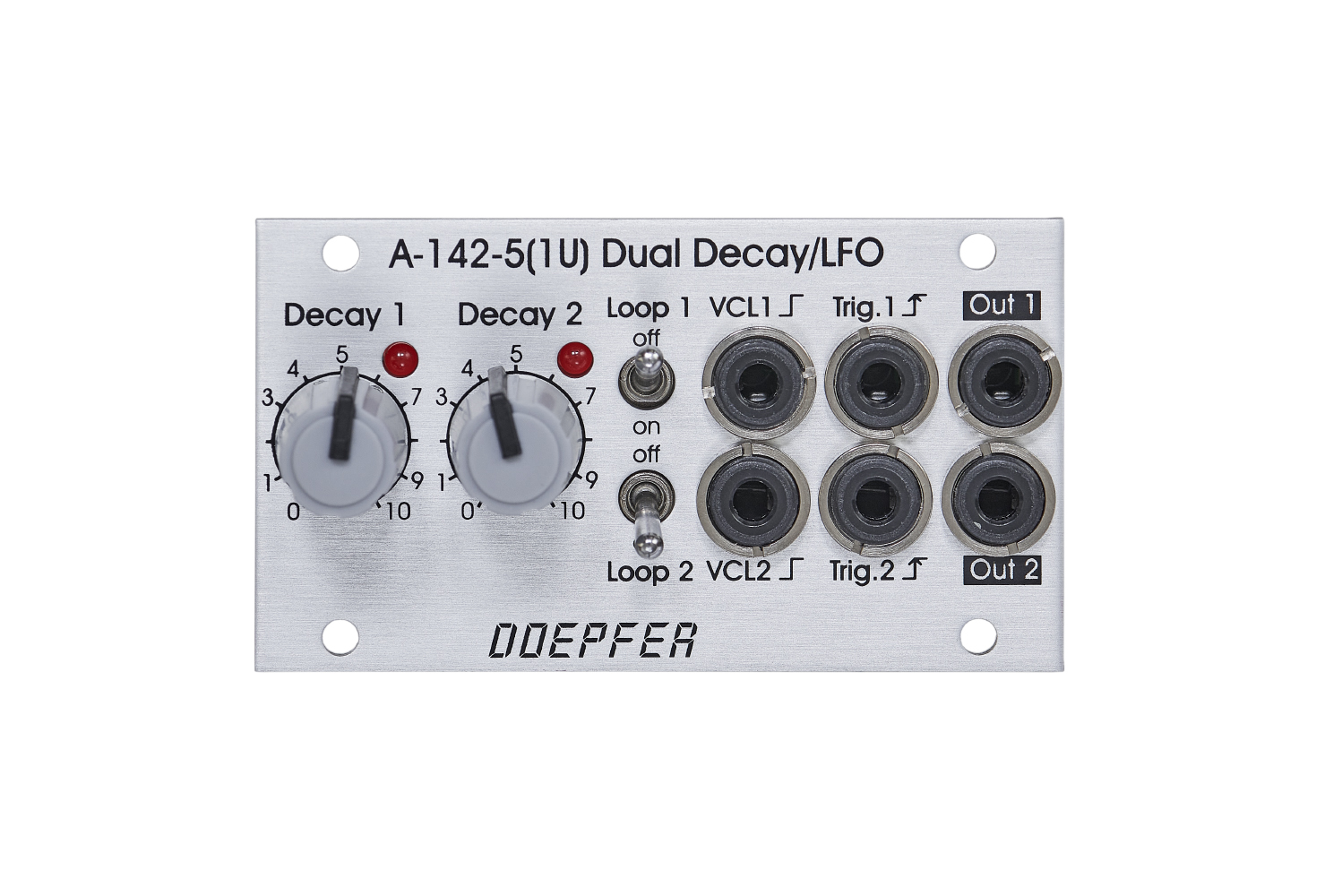

Doepfer A-142-5 1U Dual Decay/LFO

• Two simple envelope generators with A/D LFO capability
• Manual Decay control per unit, adjustable from 2 ms to 2 seconds
• Trigger inputs are normalled (1 to 2)
• Loop toggle switch selects between envelope (off) and LFO (on) modes Two Gate and CV outputs
• VCL (Voltage Control Loop) input activates the loop, turning the unit into an LFO (when the Loop toggle is off)
• Envelope and LFO interfere with each other if a trigger signal is applied during LFO mode

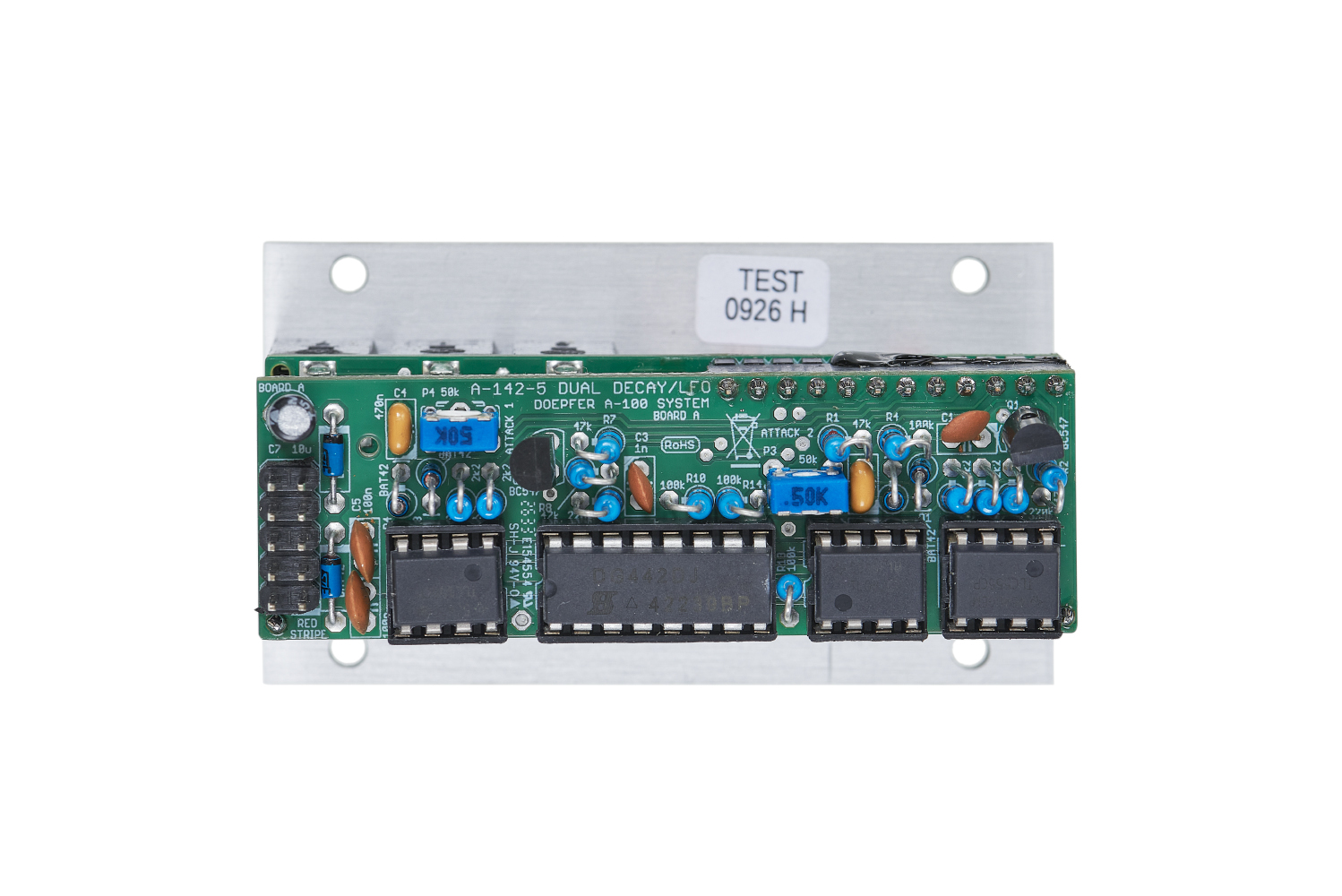

• Attack time is adjustable via internal trim pots for each subunit

Power consumption: +10mA (+12V) / -10mA (-12V)
Height: 1U
Width: 14 HP
Depth: 45 mm (measured from the rear side of the front panel)
