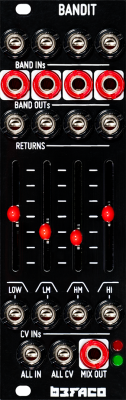

Befaco Bandit

Bandit is a fun combination of band-pass filters, VCAs, and routing options.
It serves multiple functions including equalizer, crossover, multiband VCA, 4 band spectral mixer, and spectral external FX insert point.
• Cut or emphasize different frequency bands of a signal, acting as a voltage-controlled equalizer/isolator.
• Split a sound into four different frequency bands for external processing, and if needed, insert them back
• Mix four different signals with predefined tone placement in the mix.
• Create four different sounds from one sound source by modulating the volume with four different envelopes.
• Create evolving timbres by modulating one or more frequency bands using LFOs or audio-rate modulation.
Feature:
• Four Band CV controllable EQ.
• Individual inputs per Band.
• Return inputs.
• Level and Peak LEDs.
SPECS
• Current needs: +12V: 80mA, -12: 70mA, 5v:0
• Width: 8 HP
• Depth: 30mm (including power connector)
• Designed, kits prepared and modules assembled in Barcelona.
