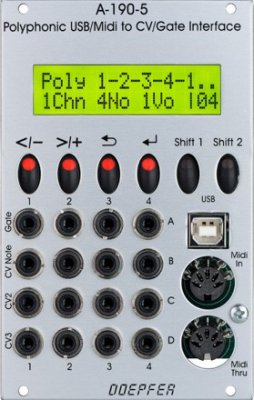

Doepfer A-190-5 Polyphonic midi to CV

Module A-190-5 is a four voice Midi/USB to CV/Gate interface. For each voice a pitch control voltage (CV1, 1V/octave standard to control VCOs), a gate output (to control envelope generators) and two additional control voltages (CV2, CV3) are available. The two additional CV outputs can be controlled by Midi velocity, volume, modulation, pitch bend, after touch or free assignable Midi controllers. The mode is selected by means of momentary switches and is shown in the LC display. Certain parameters of each mode can be edited (e.g. the midi channel(s), the midi reference note for 0V CV, assigned controllers for CV2 and CV3). The parameter values (e.g. midi channels) are shown in the display and can be modified by means of the momentary switches. In Play mode the LEDs of the first four switches display the gate states.
