€124.58

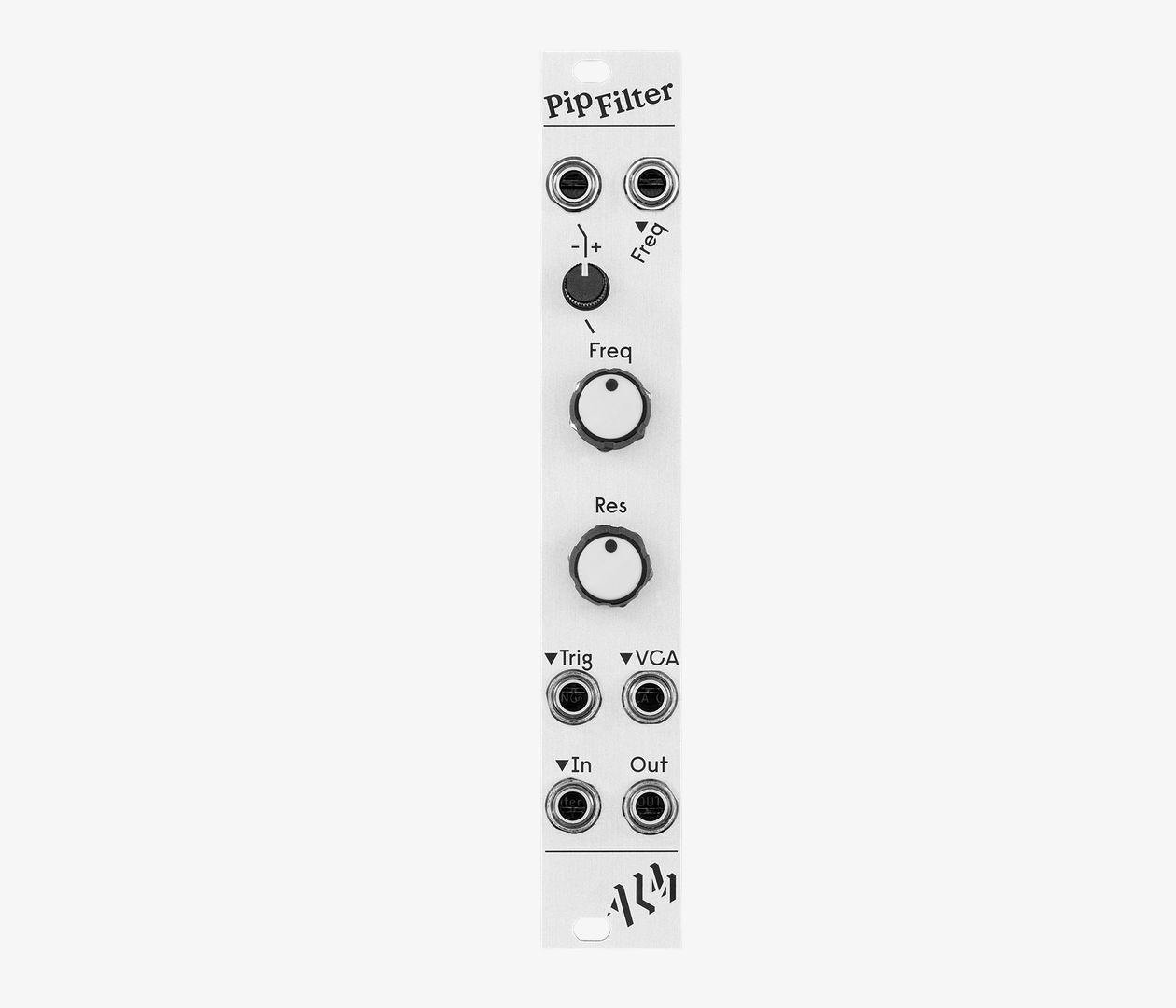

The ‘Pip Filter’ is a compact 4HP voltage controlled 2 pole low-pass filter with resonance, a ‘pingable’ trigger input and built in VCA.
- Secure payment by card
- E-mail us, we reply swiftly!
\* Edit these rows under Content > Product page
Description
Article no.: ALMPipFilter
Filter cutoff is controlled via both knob control and dual CV inputs with a built in attenuverter. Resonance is manually controlled and will reach into self oscillation with rough V/Oct tracking. A trigger input allows the filter to be pinged for percussive plucked type sounds. Finally, a built in VCA (normalled open) allows for additional independent amplitude control of the filtered signal.
- Compact filter and VCA in 4HP.
- Dual pole 12dB/Oct Low pass filter with resonance.
- Two frequency CV inputs, one with attenuversion and other with rough V/Oct tracking.
- Manual resonance control going into self oscillation.
- Trigger input for ‘pinging’ filter.
- Normalled VCA input for optional amplitude control.
- Skiff friendly with reverse power protection.
- 2 Year Warranty.
- Made in England.
- Size: 4HP
- Power: +12V 25mA / -12V 25mA
- Depth: 32mm (approx)
- ConditionNew
- ManufacturerALM Busy Circuits
- Store AddressRoslagsgatan 19, 11355 Stockholm
