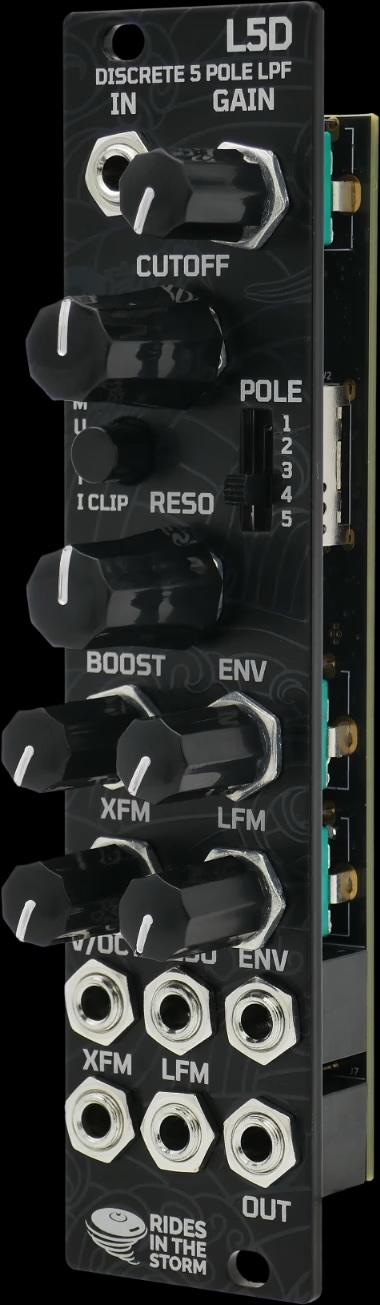

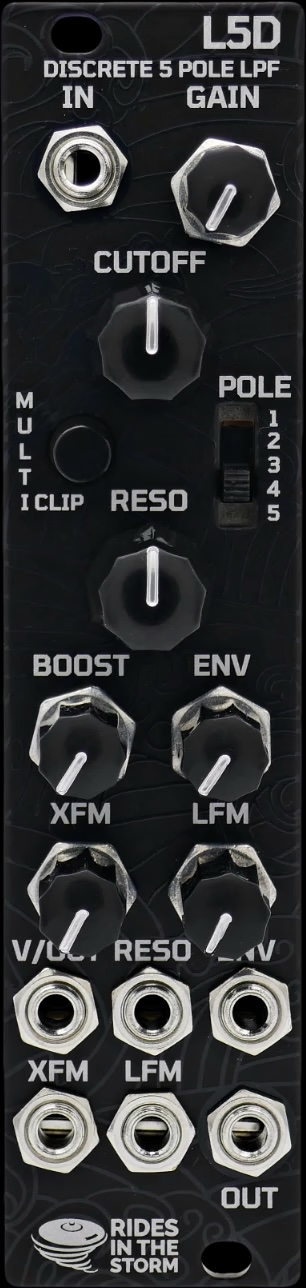

Rides in the Storm L5D
€113.50
Discrete 5v pole LPF.
- Secure payment by card
- E-mail us, we reply swiftly!
\* Edit these rows under Content > Product page
Description
Article no.: RITSL5D
• Discrete 5-pole low-pass filter
• Switchable slope: 6 dB, 12 dB, 18 dB, 24 dB, 30 dB
• Controls for cutoff and resonance
• Boost control to compensate for level loss at high resonance settings
• Switchable multiclipping for all 5 cores and resonance
• Bootstrap clipping circuit to prevent clipping peaks (from input and resonance) below the threshold and to provide mild clipping above it
• Well-tracked self-oscillation of resonance achieved with three trim pots on the back
• Audio input with gain control
• 5 CV inputs: Key (1 V/oct.), Resonance, Envelope (with attenuator), Exponential FM (with attenuator), Linear FM (with attenuator)
• Screwed Metal Potentiometer and Aluminum Frontplate
• Current consumption: 40 mA (+12 V) / 40 mA (-12 V)
• Width: 6 TE
• Depth: 25 mm
• Switchable slope: 6 dB, 12 dB, 18 dB, 24 dB, 30 dB
• Controls for cutoff and resonance
• Boost control to compensate for level loss at high resonance settings
• Switchable multiclipping for all 5 cores and resonance
• Bootstrap clipping circuit to prevent clipping peaks (from input and resonance) below the threshold and to provide mild clipping above it
• Well-tracked self-oscillation of resonance achieved with three trim pots on the back
• Audio input with gain control
• 5 CV inputs: Key (1 V/oct.), Resonance, Envelope (with attenuator), Exponential FM (with attenuator), Linear FM (with attenuator)
• Screwed Metal Potentiometer and Aluminum Frontplate
• Current consumption: 40 mA (+12 V) / 40 mA (-12 V)
• Width: 6 TE
• Depth: 25 mm
