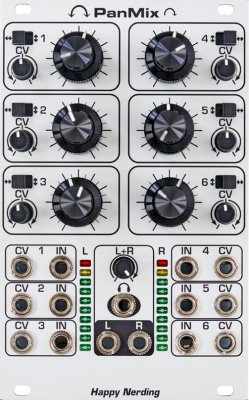

Happy Nerding Pan Mix

PanMix is a 6 channel mixer with manual/CV panning and volume controls • 6 channel mixer with manual panning and volume for each 6 channels with dual concentric knobs; • Each channel has bipolar CV knob with a switch to have this CV applied to either amplitude or panning. • Total volume knob (L+R); • Headphone output; • 10 segments led indicators for L and R channels; • High quality parts for lowest noise and distortion. • Equal power pan law (3dB) • Exponential CV response for amplitude • Linear CV response for pan Inputs 3 and 6 have mono/stereo switch on the modules backside. Thus each of these inputs can be optionally set to either stereo or mono operation. For stereo mode standard 3.5 mm TRS plug should be used. So the user can set the module to: • 6 mono inputs • 5 mono inputs plus 1 stereo • 4 mono inputs plus 2 stereo 200 mA +12V 200 mA – 12V 35 mm Depth 16 HP wide
