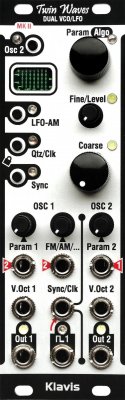

Klavis Twin Waves mk 2

Twin Waves MKII Voltage-controlled Dual VCO/LFO/random Two oscillators independently set as VCO, LFO, or random generator Features in VCO mode: • V/Oct tracking over 10 octaves • Through zero and linear FM • Sub-octave output • Hard & soft synchronization • VCA control and CV algorithms selection • Quantizer with various scales 20 algorithm-based synthesis types among: • Wave shaping • Phase modulation • Phase positioning of multiple waves • Up to 5 stacked oscillators in tunable unison • Self-sync with phantom oscillator • Additive synthesis (7 waves) • Variable bit reduction (bit-crushing) • Ring modulator with its own 2nd oscillator • Noise with LPF, BPF, or resonant filter Features in LFO mode: • Simultaneous signal and trigger outputs • External wave synchronization • Clock controlled rate with voltage controlled multiplier and divider • CV and knob control of output level Algorithm based wave engine with a selection of: • Wave shaping • Phase modulation • Random levels and vectors (also Brownian) • Randomly spaced triggers and waves • Display with contextual icons and instant reminder help text • LEDs indicating potentiometer vs. value matching, switch settings and output signals • Automatically saved settings for instant recall at power on • Firmware update by playing an audio file via the front panel • Compact and skiff-friendly module
