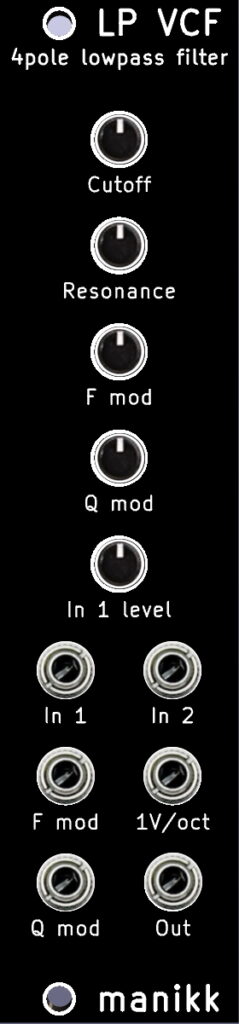

Manikk Lowpass VCF
€180.69
Small and compact voltage controller low pass filter with modulation inputs for both frequency and resonance.
- Secure payment by card
- E-mail us, we reply swiftly!
\* Edit these rows under Content > Product page
Description
Article no.: ManikkLPVCF
Cutoff frequency with manual frequency knob and modulation CV input jack with amount knob.
Resonance with manual resonance knob and modulation CV input jack with amount knob.
Two audio input jacks, one with gain level knob.
1V/octave CV input jack with trimpot on the backside.
Filtered audio output jack.
Package contents
1 module
1 power cable
2 screws
Cardboard box
Technical specifications
Dimensions
Width: 6 HP
Depth: 21 mm
Current consumption
+12V: 10mA
-12V: 10mA
Resonance with manual resonance knob and modulation CV input jack with amount knob.
Two audio input jacks, one with gain level knob.
1V/octave CV input jack with trimpot on the backside.
Filtered audio output jack.
Package contents
1 module
1 power cable
2 screws
Cardboard box
Technical specifications
Dimensions
Width: 6 HP
Depth: 21 mm
Current consumption
+12V: 10mA
-12V: 10mA
- ConditionNew
- FunctionFilter
- HP6
- ManufacturerManikk
- Store AddressRoslagsgatan 19, 11355 Stockholm
