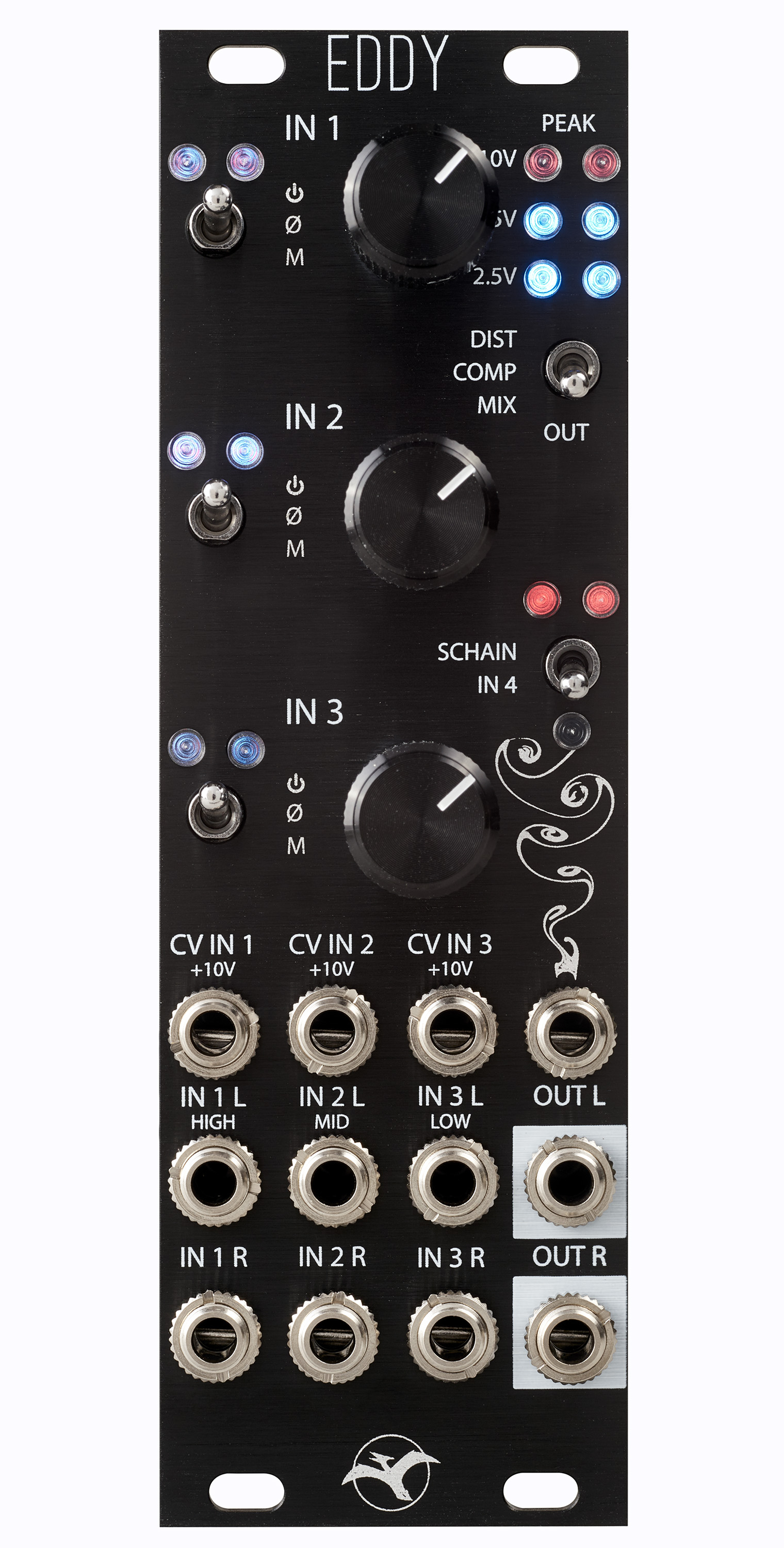

Schlappi Engineering Eddy
Eddy is a three channel stereo CV controlled mixer with sidechain compression and distortion, designed as a compact submixer. It also has normalized feedback paths for more experimental tone shaping, no input mixing and percussion synthesis workflows.
Colour
Price
Black
€262.74

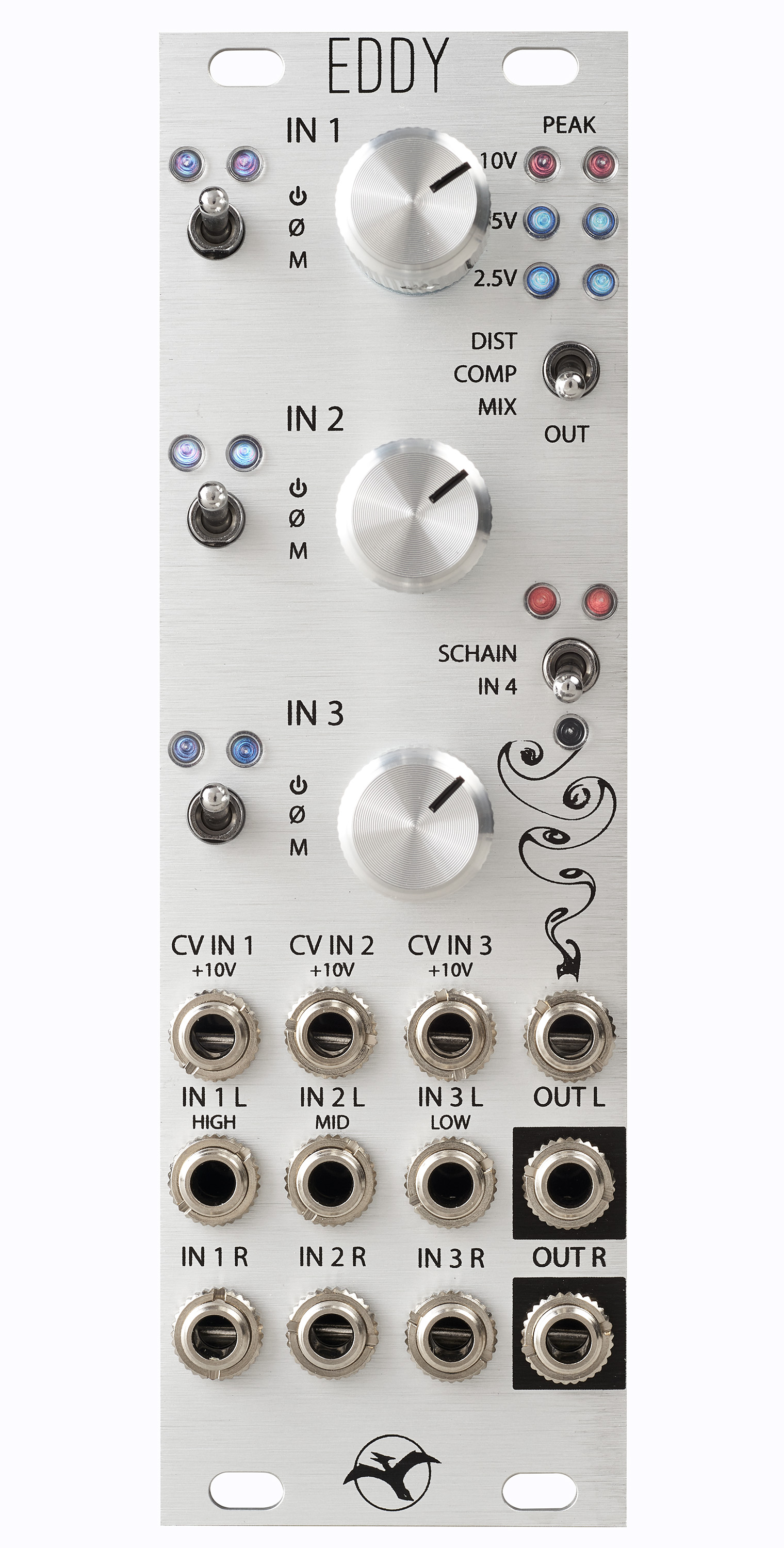

Silver
€262.74
- Secure payment by card
- E-mail us, we reply swiftly!
\* Edit these rows under Content > Product page
Description
Article no.: SchlappiEddy
Features:
3 stereo channels
Invert/mute switches for each channel
Built in VCA feedback compressor
Fourth input is switchable between a mono input or sidechain input
Aggressive distortion
Output switchable between distortion, compression, and clean mix on main module
Individual outputs for each filter available on expander
Normalized feedback through three bandpass filters allows for no input mixing and percussion synthesis
Individual outputs for each filter available on expander
Headers on back allow one channel of line level input
Trimmer on back allows for altering compressor threshold level
8HP for the main three channel stereo mixer module
4HP expander to use as triple stereo VCA
34mm depth (including cable)
current draw: +12V 146mA, -12V 146mA
Cascade expander (sold separately) allows access to the individual Eddy VCA outputs for use as a triple stereo VCA as well as access to the feedback filter outputs and simultaneous clean, compressed, and distorted bus outputs for additional mixing and processing options.
3 stereo channels
Invert/mute switches for each channel
Built in VCA feedback compressor
Fourth input is switchable between a mono input or sidechain input
Aggressive distortion
Output switchable between distortion, compression, and clean mix on main module
Individual outputs for each filter available on expander
Normalized feedback through three bandpass filters allows for no input mixing and percussion synthesis
Individual outputs for each filter available on expander
Headers on back allow one channel of line level input
Trimmer on back allows for altering compressor threshold level
8HP for the main three channel stereo mixer module
4HP expander to use as triple stereo VCA
34mm depth (including cable)
current draw: +12V 146mA, -12V 146mA
Cascade expander (sold separately) allows access to the individual Eddy VCA outputs for use as a triple stereo VCA as well as access to the feedback filter outputs and simultaneous clean, compressed, and distorted bus outputs for additional mixing and processing options.
- ConditionNew
- ManufacturerSchlappi Engineering
- Store AddressRoslagsgatan 19, 11355 Stockholm
