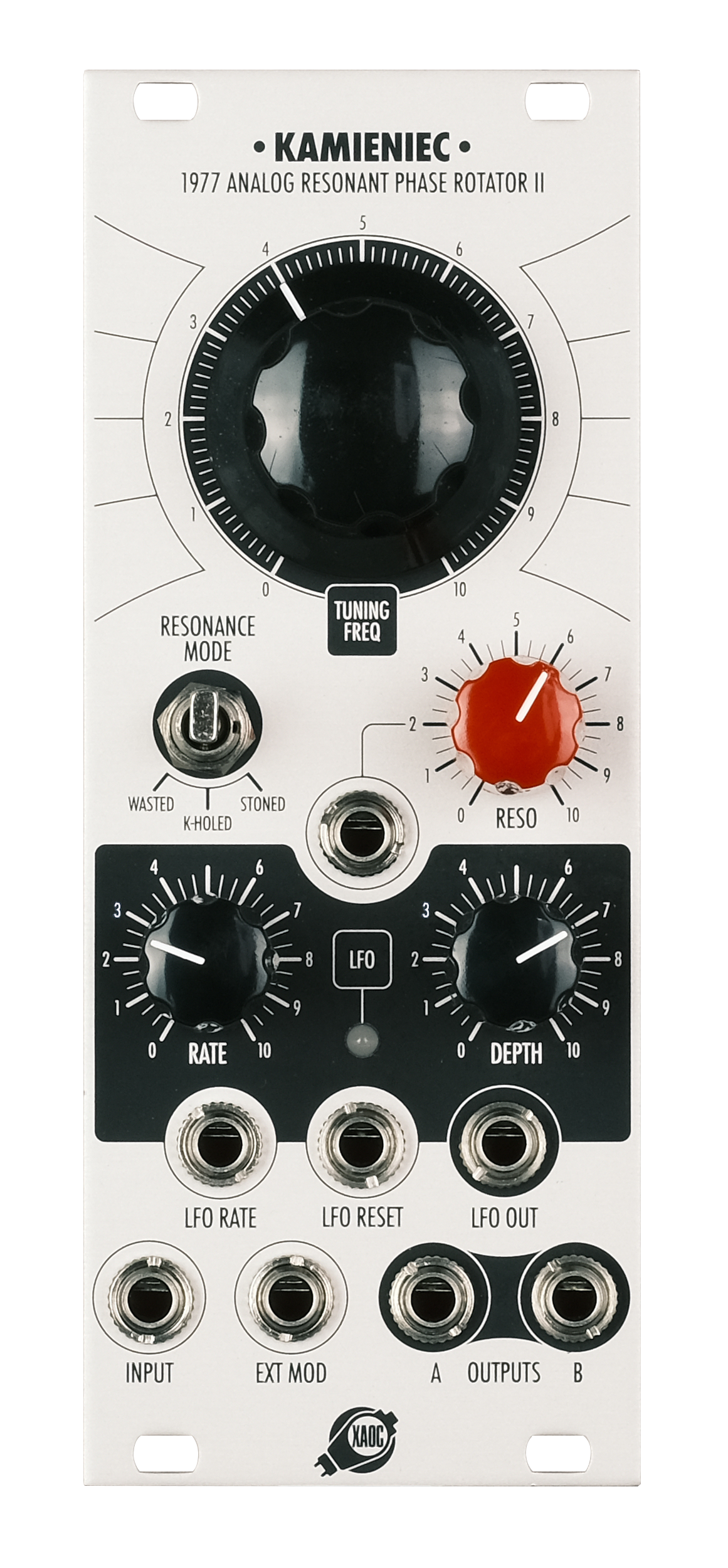

XAOC Devices Kamieniec mk II

It preserves the classic sound while being versatile enough to shine with any modular sound source. The new module shares the basic specifications with its predecessor: 4 and 6-stage outputs, built in triangle LFO (with a separate output in the true modular spirit), manual resonance control (up to extremely high values), and spicy feedback routing modes. Kamieniec II has been completely redesigned and has multiple new features, such as voltage control over resonance, a third feedback mode, and an LFO reset input. We have retained the chaining capability—Kamieniec II is fully compatible with the original Kamieniec, so you can easily mix and match both generations of the module. For detailed description, please refer to the manual.

Features
• Analog 4/6-stage phaser inspired by the 70s classics
• Simultaneous four and six-stage outputs
• Voltage controlled resonance
• Onboard voltage controlled wide range syncable LFO
• Additional external modulation input
• Independent LFO output
• Three feedback modes
• Chainable for multi-stage phasing

Technical details
• Eurorack synth compatible
• 10hp, skiff friendly
• Current draw: +60mA/-60mA
• Current draw with exp.: +140mA/-140mA
• Reverse power protection
